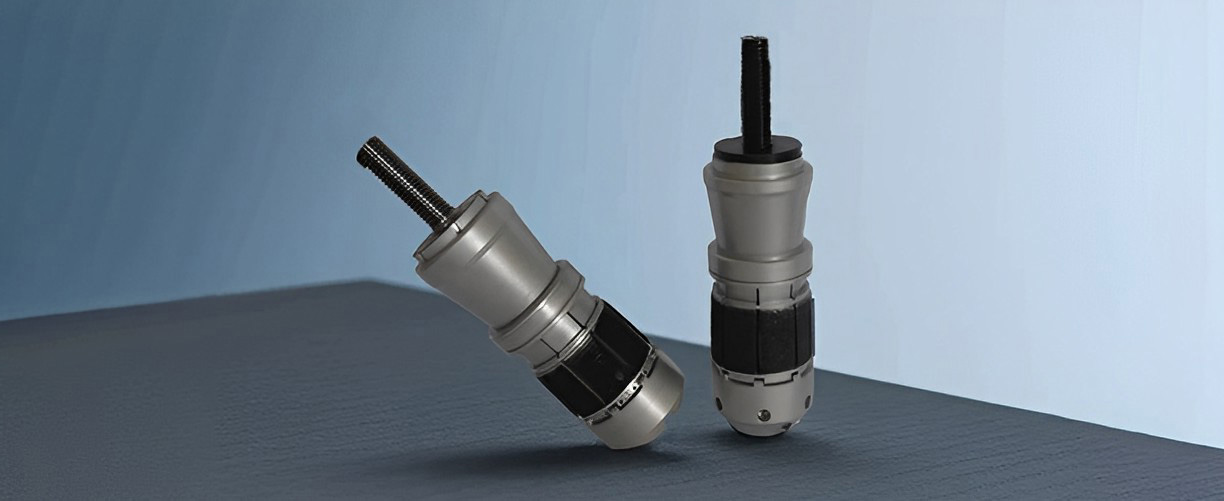

The Zhongke brand fully soluble bridge plug/ball seat is made of soluble metals and water-soluble rubber as raw materials, combined with a stable fracturing ball seat design scheme. It is mainly used to block the wellbore during fracturing, and after the fracturing construction is completed, it dissolves naturally in the fracturing fluid, providing a full bore wellbore for subsequent operations.

Zhongke brand fully soluble bridge plug/ball seat features:

1. Ultra short structure, large diameter, separated lower joint, good solubility

2. The bridge plug structure is compact, with a large inner diameter, short length, and light weight

3. Fully soluble slip, diamond sand friction bi-directional anchoring, anti slip design, no drilling jamming, no damage to casing, has applied for a US patent;

4. After dissolution, it does not clump or undergo secondary condensation

5. Patent manufacturing of soluble rubber, safe and environmentally friendly, controllable cost of die-casting process

6. Suitable for design at different temperatures, with adjustable dissolution rate in different environments

7. The adapter structure adopts an impact resistant design. Prevent the bridge plug from being prematurely seated due to friction and collision during the process of entering the well

8. 50% high elongation metal soluble sealing design, meeting the mechanical performance requirements and dissolution of sealing materials at different temperatures.
